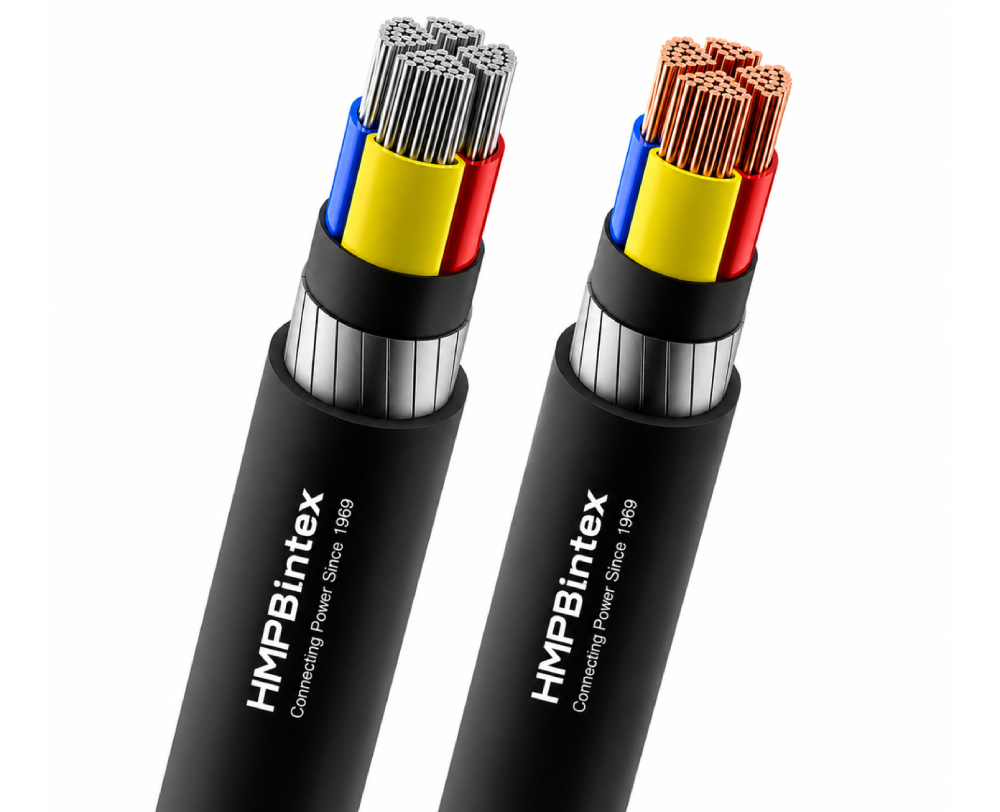

Application : XLPE Armoured cables are generally used for power transmission and distribution line rated at 1100v. In comparison with PVC insulated power cable, XLPE boast not only characteristics of excellent electricity mechanism, and heat stress but also has simple structure, light weight, no restriction on laying drop & high temperature allowance for long term working.

Conductor : Conductors are made from Electrolytic Aluminium/Copper conforming to IS : 8130, and are compact circular or compact shaped. Stranding makes the cable fexible while shaping makes them compact.

Core colour : Red, Yellow, Blue & Black.

Insulation : Shaped conductors are insulated with XLPE compound which has high Insulation and volume resistivity, along with higher current carrying capacity than PVC.

Inner-Sheath : Laid up and twisted conductors are provided with best in class extruded PVC which acts as a bedding for G.I. wire/strip armouring.

Armouring : Best in class hot dipped GI wire/strip are used for armouring the cable.

Outer-Sheath : Specially formulated ST-2 compound is used for outer sheathing of XLPE cables.
Marking : Sequential meter marking with generic marking “HMP Bintex” at one meter interval.
